Can a Water Softener Prevent Limescale in Central Heating Boilers?

At Berkshire Powerflush Engineering, we are often asked whether a domestic water softener can help reduce or eliminate the formation of scale inside a boiler's primary heat exchanger. The short answer is yes, provided the system is configured correctly and the water chemistry is understood.

To appreciate how a softener works and what impact it has on your heating system, it is important to understand the chemistry of scale formation — and how ion exchange technology alters the behaviour of mineral-laden water.

What Is Limescale and How Does It Form?

Limescale is a crystalline precipitate formed primarily of calcium carbonate (CaCO₃). In domestic water supplies, calcium is present as Ca²⁺ ions, often accompanied by magnesium ions (Mg²⁺). These two cations are responsible for what is commonly known as "hard water."

When hard water is heated, particularly above 60°C, the solubility of calcium bicarbonate [Ca(HCO₃)₂] in water decreases. This causes it to undergo a thermal decomposition reaction.

The result is a fine, white, chalk-like deposit of calcium carbonate that adheres to hot surfaces. Inside a central heating boiler, this most often forms on the walls of the primary heat exchanger, particularly in combi and system boilers. The limescale acts as a thermal insulator, reducing heat transfer efficiency and forcing the boiler to work harder, run hotter and consume more gas.

Common symptoms include:

• Kettling or whistling noises as water boils locally on scaled surfaces

• Slower hot water delivery or reduced heating performance

• Increased gas usage due to poor heat exchange

• Premature boiler failure in severe cases

This type of internal scaling can be deceptive. The system may appear clean externally, but within the heat exchanger's narrow passages, calcium carbonate can accumulate in dense, plate-like layers. These deposits reduce water flow and lead to localised boiling, which often manifests audibly before it is observed in performance.

How a Water Softener Prevents Scale

Domestic water softeners use ion exchange resins to remove calcium and magnesium from the incoming mains supply. The resin beads inside the softener are coated in sodium ions (Na⁺). When hard water flows through the resin bed, the following exchange occurs:

In simple terms, the calcium and magnesium ions are captured by the resin, and sodium ions are released into the water in their place.

The key distinction: Sodium ions do not form insoluble carbonates under heat. Therefore, the softened water does not scale.

Visualising the Effect

Imagine your boiler’s heat exchanger as a metal pipe constantly exposed to a stream of mineral-rich water. In hard water conditions, this pipe becomes lined with a concrete-like deposit, narrowing the internal diameter and insulating the heat transfer surface. With softened water, this coating never forms. The interior remains hydraulically clear and thermally responsive.

When Is a Softener Effective in Heating Protection?

A softener can protect a central heating boiler from scale if the following conditions are met:

The boiler is filled with softened water

• Many systems are initially filled via a filling loop connected to the incoming mains. If that supply is softened, the internal volume of the system will be free from hardness ions.

The system remains sealed or consistently topped up with softened water

• In modern sealed systems, no additional water should enter unless there's a leak or topping-up event. Once filled with softened water, protection is maintained indefinitely.

• In open-vented systems, protection is equally effective provided that the feed and expansion (F&E) tank is filled and topped up with softened water. All water entering the system during evaporation or leakage replenishment will then be free from scale-forming ions.

There is no existing scale

• A softener prevents scale but does not remove scale that has already formed. For existing limescale, mechanical or chemical descaling may be required.

Hard water areas

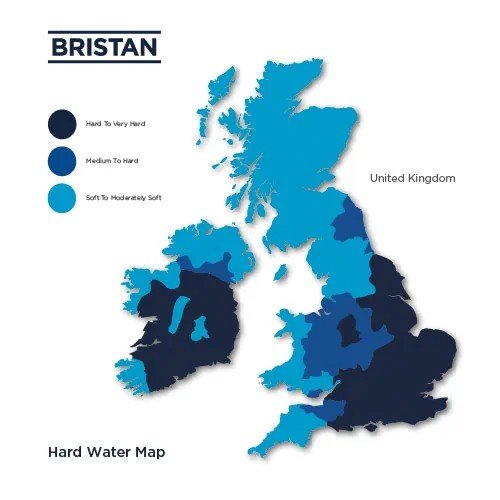

• The effect is most pronounced in areas like Berkshire, where mains water hardness often exceeds 250 ppm CaCO₃ equivalent. Here, scaling risk is high and the benefit of a softener is significant.

Manufacturer Recommendations and Compliance

Most boiler manufacturers, including Worcester Bosch, Vaillant, Ideal and Baxi, permit the use of softened water in their appliances, provided certain criteria are met. These usually include:

• A maximum sodium concentration, generally not exceeding 200 mg/L

• The continued use of an appropriate corrosion inhibitor

• Avoiding excessive use of salt-based cleaners or non-WRAS approved fittings

Softened water is not considered corrosive to heat exchangers or internal pipework when managed correctly. Furthermore, water softeners installed in accordance with BS 14743 and BS 7593 are considered safe and compliant for use in residential heating systems.

The Water Regulations Advisory Scheme (WRAS) also recognises softeners as compliant for use on supply lines feeding indirect heating circuits, provided there is no cross-connection to potable water storage.

Common Questions and Clarifications

❓ Does softened water damage heating systems?

No. Most boiler manufacturers approve the use of softened water in heating circuits. Some advise that the sodium content should remain below certain thresholds (typically under 200 mg/L), which standard domestic softeners comfortably achieve.

❓ Do I still need a corrosion inhibitor?

Yes. Softeners remove scale-forming ions but do not protect against oxidation or corrosion. A chemical inhibitor must always be added to prevent the formation of ferrous oxide (magnetite) sludge.

❓ What if the system was already filled with hard water?

In this case, scale may already exist inside the heat exchanger. Power flushing will not dissolve this. A Gas Safe engineer may need to carry out an isolated acidic descaling treatment using approved cleaning agents.

❓ Can I connect only some outlets to the softener?

Yes. In many homes, kitchen taps or outside garden supplies are left on hard water via a bypass. What matters for heating protection is that the boiler fill loop or F&E tank is fed with softened water.

A Final Word on Non-Salt Water Softeners

There is a growing market of water conditioning products that claim to prevent scale without the use of salt, resin, or ion exchange. These include magnetic coils, electromagnetic descalers, and electrolytic or catalytic cartridges. While they are often marketed as “eco-friendly” or “maintenance-free,” their scientific basis is weak, and their effectiveness is inconsistent at best.

How They Claim to Work

Most of these devices do not remove calcium or magnesium ions. Instead, they claim to alter the behaviour of the dissolved minerals — usually by applying a magnetic or pulsed electrical field — in a way that prevents those ions from forming hard crystalline limescale when heated.

Manufacturers sometimes describe this effect using vague terminology like:

• “Crystallisation modulation”

• “Template-assisted nucleation”

• “Hydro-physical transformation”

While these phrases sound impressive, they typically lack peer-reviewed evidence or reliable third-party testing in domestic heating systems.

Do They Work?

In laboratory conditions, some small reductions in scale formation have been recorded under specific parameters. But in real-world domestic heating systems, especially with plate heat exchangers and high flow rates, the benefit is negligible. The underlying minerals are still present in the water. And unlike true softeners, these systems offer:

• No ion removal

• No reduction in TDS (Total Dissolved Solids)

• No manufacturer-recognised protection against boiler scaling

In short: the water is still hard, and so is the scale that forms.

Why We Don’t Recommend Them

At Berkshire Powerflush Engineering, we take a science-led approach. If a product does not remove the scale-forming minerals from the water or change its measurable chemistry, then it is not a softener — it is a conditioner, and a weak one at that.

For homeowners serious about preventing limescale damage inside their heating systems, there is one proven method: ion exchange water softening. Anything else is a distraction — or, at worst, an expensive placebo.

Visual Signs of Limescale vs Magnetite

It is important not to confuse limescale, which is white and chalky, with magnetite, which is black and particulate. Both can reduce heating efficiency, but they originate from entirely different processes:

Contaminant: Limescale

• Appearance: White or grey in colour, hard, and chalky in texture.

• Origin: Formed from precipitated calcium carbonate, often due to hard water.

• Removed by: Using soft water and/or a descaler.

Contaminant: Magnetite

• Appearance: Black in colour, with a powdery or sludgy texture.

• Origin: Caused by corrosion of steel components within the heating system.

• Removed by: A powerflush treatment, followed by the use of an inhibitor to prevent recurrence.

Power flushing is highly effective for removing magnetite, but it has limited value for hardened limescale. That is where prevention via water softening becomes vital.

Conclusion

Fitting a water softener is an effective preventative strategy against limescale accumulation inside a central heating boiler. It works by replacing calcium and magnesium with sodium, thereby removing the precursors of scale before they can crystallise under heat. This preserves the thermal efficiency of the heat exchanger, extends the lifespan of the boiler and reduces fuel consumption.

Whether your home uses a sealed system or an open-vented configuration, softened water offers the same level of protection — as long as the system is filled and topped up from a softened supply. In open-vented systems, this means ensuring the feed and expansion tank is connected to the softener line.

However, softened water is not a substitute for system cleaning or corrosion protection. It should be viewed as one part of a comprehensive water treatment strategy.

For homeowners in hard water areas, a softener is an investment that will pay for itself in reduced maintenance, improved efficiency and longer equipment life. If you would like to know whether your system is compatible with soft water protection, we would be delighted to advise you.
